TBS - 2D MOVE
2D MOVE - TBS Terminal
Find TBS - 2D MOVE in
Solutions

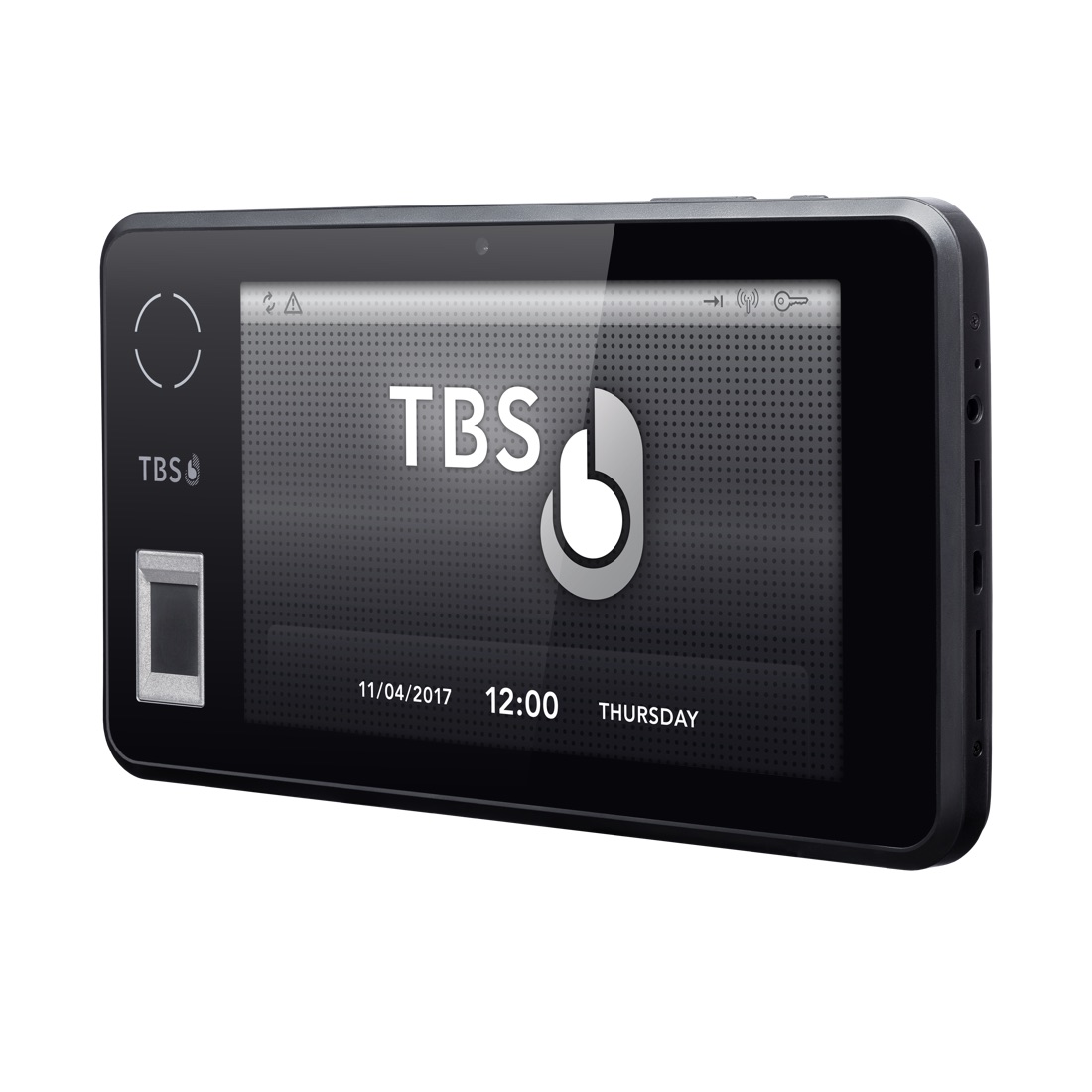

2D MOVE is the biometric reading device that follows who is traveling because it is specifically designed for
mobile use. With built-in wireless connections, it provides the user with accurate and secure identification,
anywhere
it lies. This mobile fingerprint scanner offers a user-friendly experience and identification
reliable via capacitive touch sensor or integrated reader for Mifare tags. Robust and adaptable, it is
designed to work on the move.
BIOMETRICS, PINS AND TAGS
Equipped with a capacitive touch sensor, 2D MOVE reliably provides proof of true identity. The module
Integrated RFID reads Mifare tags that, along with a PIN, authenticate up to 100,000 users in verification mode,
immediately.
CUSTOMIZABLE APPLICATIONS
Each authentication stores user data, timestamp, time management context, and GPS location at
time of booking. Thanks to our many flexible firmware options and the integrated camera, you
can create endless smart applications to solve specific customer needs.
COMPATIBILITY
The 2D TOUCH family uses a common biometric model, so the user must register only once to be able to
then access any 2D reader. 2D MOVE is the ideal reader for those looking for identification on the go, offering
a mobile solution without compromise on security.
Main Features:
Part number | 2D MOVE |
Category | Terminals |
Template | Finger 2D |
Technology | Capacitive |
Touchless | no |
DB limit 1:N | 5000 |
DB limit 1:1 | 100000 |
Access Control | No |
Time & Attendance | Yes |
RFId (Mifare) | Yes |
Template on card | - |
Display | 7.0" |
Liveness detection | - |
Interfaces | Bluetooth 4.0, USB OTG 2.0 high speed micro USB, microSD, 3.5mm stereo audio jack. |
Network | 4G LTE, Wifi (opt.) |
Anti-tampering | - |
Operating Temp. °C | 0 ÷ +35 |
Humidity % | 10 ÷ 90 |
Power supply | USB - 5Vdc |
Max power | - |
Audio feedback | - |
Ingress protection | IP20 |
Dimensions (L H W) mm. | 225 × 121 × 15 |
Notes / more | Requires SIM card to activate 4G connectivity. Internal GPS sensor and antenna. Embedded LiPo battery 7000 mAh. Power supply included. |
