![](../../images/TBS/3D_FLASH.png)

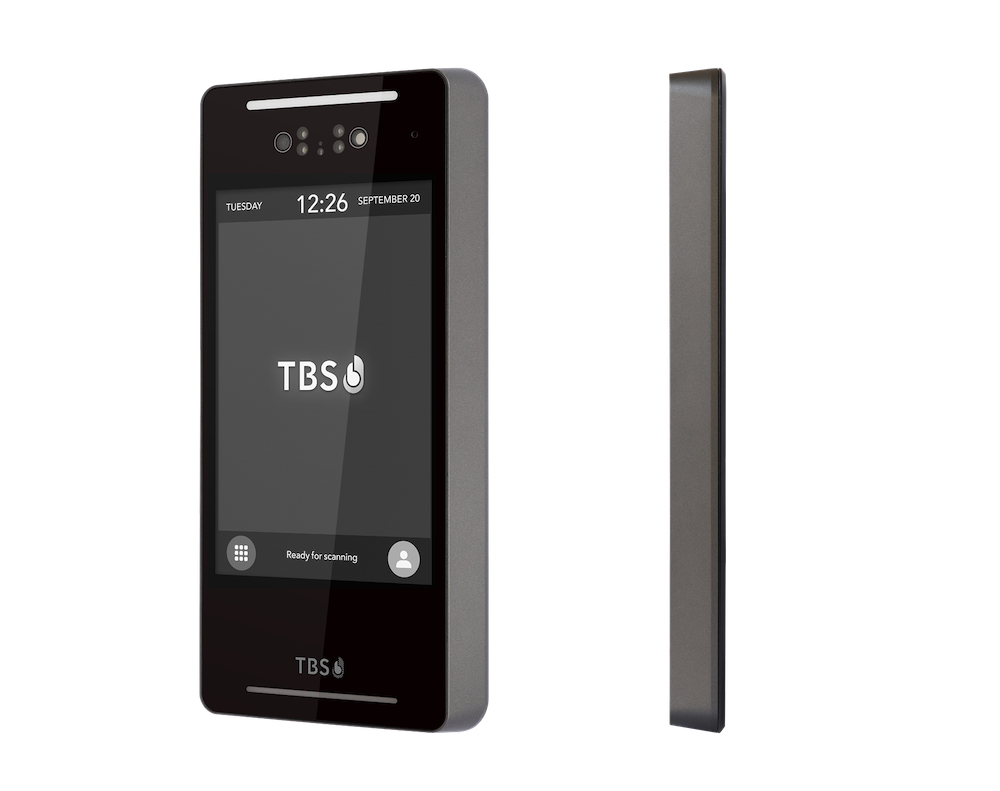

TBS - 3D FLASH+
3D FLASH+ - TBS Terminal
Find TBS - 3D FLASH+ in
Solutions
3D FLASH+ is the latest TBS facial recognition device. In addition to the brand new 3D algorithm for the
facial recognition and verification via walk-through method, also offers functionality against attempts to
falsification.
CAPTURE WITHOUT TOUCH
The HD camera on the biometric reader scans the user’s face for recording. This process
recording is directly on the player, which means that there is never any face tracking not
previously registered.
WALK-TROUGH METHOD
3D FLASH+ facial recognition system is designed for fast and accurate authentication. It can be
configured to operate at different distances (up to 4 meters) and includes anti-spoofing functionality to reject
attempts to read through photos, videos and masks.
LARGE DATABASE CAPACITY
3D FLASH+ is designed for indoor installation and can be used in a wide range of environments, from
airports to production facilities. It can store up to 10,000 faces in identification mode
(1:N) and 100,000 faces in verification mode (1:1), even with two-factor authentication including systems based
on paper, PIN codes or mobile access options.
Main Features:
Part number | 3D FLASH+ |
Category | Terminals |
Template | Face |
Technology | Face Scan |
Touchless | Yes |
DB limit 1:N | 10000 |
DB limit 1:1 | 100000 |
Access Control | Yes |
Time & Attendance | Yes |
RFId (Mifare) | Optional |
Template on card | - |
Display | 8.0" |
Liveness detection | Optional |
Interfaces | RS232, RS485, Wiegand out, OSDP, Relay NO/NC, 2xGPIN, 2xGPOUT |
Network | LAN RJ45 POE (opt. splitter), WiFi (opt.) |
Anti-tampering | - |
Operating Temp. °C | -20 ÷ +60 |
Humidity % | 10 ÷ 90 |
Power supply | 12 ÷ 24 Vdc |
Max power | 23 W |
Audio feedback | Loudspeaker |
Ingress protection | IP65 |
Dimensions (L H W) mm. | 143 x 290 x 24 |
Notes / more | Power supply included. |
