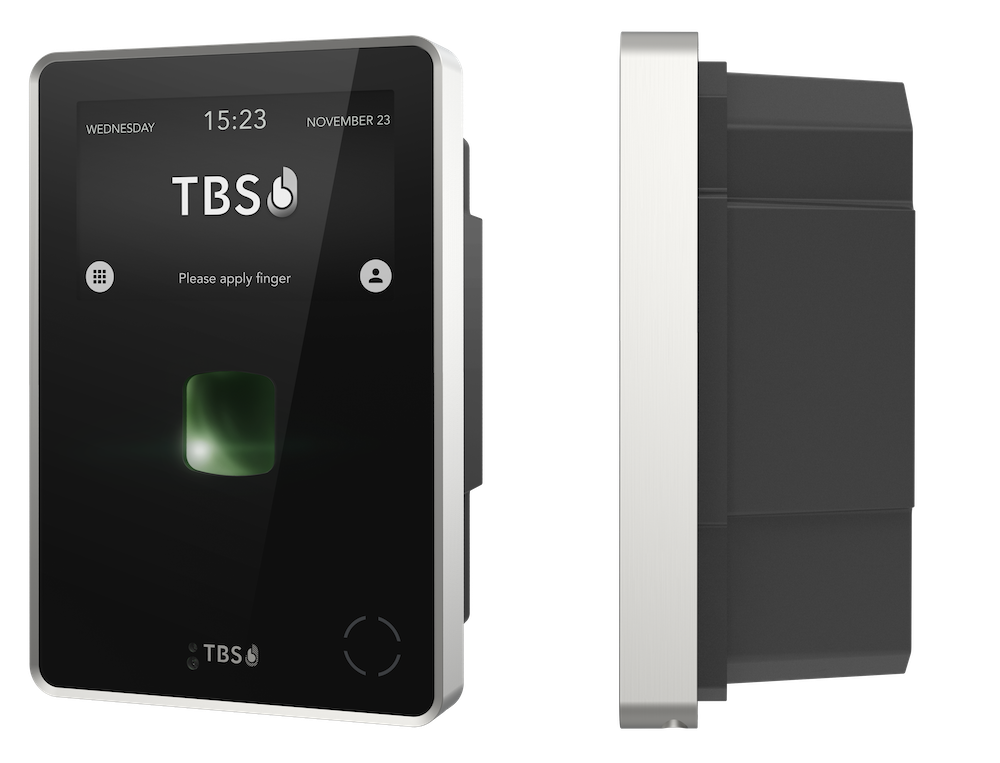

TBS - 3D AIR

3D AIR - TBS Terminal


3D AIR allows finger scanning without contact with the exclusive 3D biometric technology developed by TBS, for a truly harmonious interaction with the user.

MAXIMUM SECURITY
The 3D AIR terminal, thanks to the high-quality sensor that uses three cameras, captures a complete image fingerprint to obtain a true 3D representation and detects even the most superficial grooves for combine uncompromising precision with the highest degree of safety. HYGIENE TOUCHLESS
The touchless technology not only offers greater precision, but also offers a definitive hygienic solution: the finger is identified while suspended in the air making the device the ideal solution for sensitive applications like health and hospital care.

DETECTION LIVENESS
Higher quality liveness detection, configurable on three threshold levels, allows you to verify that the fingerprint read actually comes from a human finger rather than a copy (typically plastic or silicone), further increasing security and making it the ideal product for high security.


Main Features:

Part number 3D AIR
Category Terminals
Template Finger 3D
Technology 3D TL
Touchless Yes
DB limit 1:N 10000
DB limit 1:1 100000
Access Control Yes
Time & Attendance Yes
RFId (Mifare) Optional
Template on card Optional
Display 5.0"
Liveness detection Optional
Interfaces RS232, RS485, Wiegand out, OSDP, Relay NO/NC, 2xGPIN, 2xGPOUT
Network LAN RJ45 POE, WiFi (opt.)
Anti-tampering Yes
Operating Temp. °C -20 ÷ +60
Humidity % 10 ÷ 90
Power supply 12 ÷ 24 Vdc
Max power 11 W
Audio feedback Loudspeaker
Ingress protection IP54
Dimensions (L H W) mm. 140 x 211 x 91
Notes / more Wall mount or flush mount box available.
Outdoor protection kit available.
