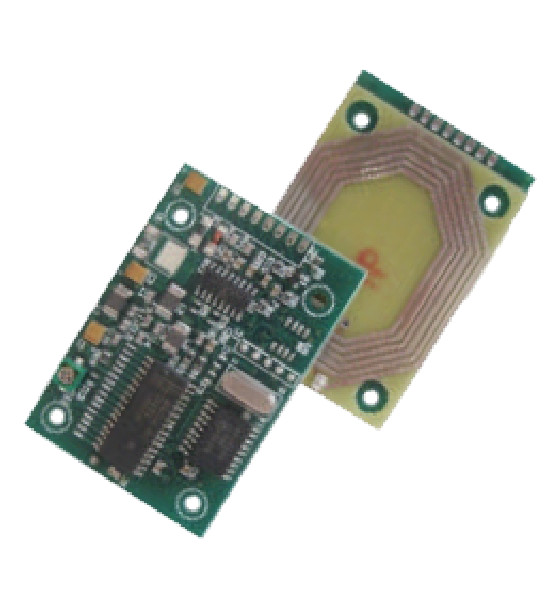

HF Reader OEM
An easy RFID Reader for every needs
HF Reader OEM is a small form factor 13.56MHz RFID Reader designed for custom applications and system integration.
It features built in antenna and optional output for tag detection signaling.
Various models available featuring different standards, working modes, interfaces and power supply range.
Specification:
| Interface | TTL | RS-232 | RS-485 | USB |
| Product Code | ||||
| standard MIFARE | IO 121.03X0 | IO 121.01XX | IO 121.0211 | IO 121.0000 |
| standard ICODE | IO 122.03X0 | IO 122.01XX | IO 122.0211 | IO 122.0000 |
| Operating Frequency | 13.56MHz | 13.56MHz | 13.56MHz | 13.56MHz |
| Function | Read | Read/Write | Read/Write | Read/Write |
| Work Mode | Polling / Spontaneous | Polling / Spontaneous | Polling | Polling |
| Power Supply | 5VDC | 5VDC / 12VDC | 12VDC | 5VDC |
| Operating Temperature | -10°C ÷ +50°C | -10°C ÷ +60°C | -10°C ÷ +60°C | -10°C ÷ +60°C |
| Dimensions(LxWxH mm) | 58 x 40 x 7.5 | 58 x 40 x 7.5 | 58 x 40 x 7.5 | 58 x 40 x 7.5 |
