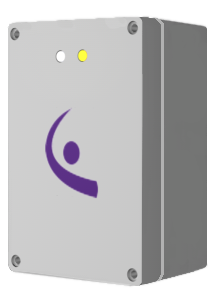

Active Device

Active Device is the reliable but robust box easy to install and totally waterproof of TagItalia.
Through its dual role of reader/writer, Active Device allows control of the activities that take place within the fully stand-alone structures, without the need of complicated wiring.
This is possible because in the inside of Active circuit the information about authorizations and credit travel on supports given to users instead on the line. For these reasons, the Active system is particularly suitable for Access Control applications and authorization for Reserved Areas, Token Machines, Showers and Hairdryers control, Lockers, Electricity Supply and much more.

Every Active device installed in the structure is programmed to perform the desired function through a Setup card prepared on PC station via the Active Programmer. The card contains the operating instructions as well as an update of validation date. After the Setup card reading, Active is ready.

Every Active device stores in memory the last 42 operations, whenever it is needed to check the history of operations you just have to bring the Backup card close, on which Active will download the buffer of last activities (date, user ID, operation). Data transfer on the PC station is done simply by placing the Backup card on the reader of Active Programmer device.

Specifications:

Product Code	Active Device
Power	10/27 VDC 2W
Grade IP	IP 65
Programming	Setup card
Dimensions (mm)	120 x 55 x 80 (L x W x H)
Output	Relay 1A

---
